PRODUCT SPEC
YTX-1200S
YTX-1200
YTX-1000S
YTX-1000
YTX-800S
YTX-800
YTX-700S (소형5축)
YTX-700 (소형5축)
YTX-1200S
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 50 ~150ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 1200 |
| S | 1200 | |
| Stroke (X-Axis) | P | 850 |
| S | 850 | |
| Stroke (Z-Axis) | 1800 | |
| Air Consumption | 5.0 (Nℓ/ Cycle) | |
| Power Capacity | 2.5 (kVA) | |
| Maximum Payload | 10 (kg) | |
YTX-1200
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 50 ~150ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 1200 |
| S | - | |
| Stroke (X-Axis) | P | 1000 |
| S | - | |
| Stroke (Z-Axis) | 1800 | |
| Air Consumption | 4.9 (Nℓ/ Cycle) | |
| Power Capacity | 1.9 (kVA) | |
| Maximum Payload | 10 (kg) | |
YTX-1000S
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 50 ~150ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 1000 |
| S | 1000 | |
| Stroke (X-Axis) | P | 600 |
| S | 600 | |
| Stroke (Z-Axis) | 1600 | |
| Air Consumption | 4.9 (Nℓ/ Cycle) | |
| Power Capacity | 2.2 (kVA) | |
| Maximum Payload | 8 (kg) | |

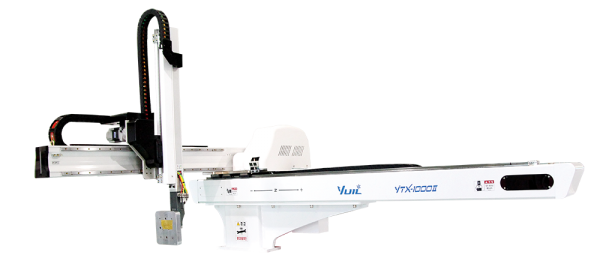

YTX-1000
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 50 ~150ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 1000 |
| S | - | |
| Stroke (X-Axis) | P | 750 |
| S | - | |
| Stroke (Z-Axis) | 1600 | |
| Air Consumption | 4.8 (Nℓ/ Cycle) | |
| Power Capacity | 1.5 (kVA) | |
| Maximum Payload | 5 (kg) | |
YTX-800S
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 50 ~150ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 800 |
| S | 800 | |
| Stroke (X-Axis) | P | 500 |
| S | 500 | |
| Stroke (Z-Axis) | 1400 | |
| Air Consumption | 4.7 (Nℓ/ Cycle) | |
| Power Capacity | 2.2 (kVA) | |
| Maximum Payload | 5 (kg) | |
YTX-800
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 50 ~150ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 800 |
| S | - | |
| Stroke (X-Axis) | P | 650 |
| S | - | |
| Stroke (Z-Axis) | 1400 | |
| Air Consumption | 4.6 (Nℓ/ Cycle) | |
| Power Capacity | 1.5 (kVA) | |
| Maximum Payload | 5 (kg) | |
YTX-700S (소형5축)
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 50 ~150ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 700 |
| S | 700 | |
| Stroke (X-Axis) | P | 450 |
| S | 450 | |
| Stroke (Z-Axis) | 1100 | |
| Air Consumption | 4.1 (Nℓ/ Cycle) | |
| Power Capacity | 7 (kVA) | |
| Maximum Payload | 5 (kg) | |
YTX-700 (소형5축)
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 50 ~150ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 700 |
| S | - | |
| Stroke (X-Axis) | P | 600 |
| S | - | |
| Stroke (Z-Axis) | 1100 | |
| Air Consumption | 4.1 (Nℓ/ Cycle) | |
| Power Capacity | 7 (kVA) | |
| Maximum Payload | 5 (kg) | |
